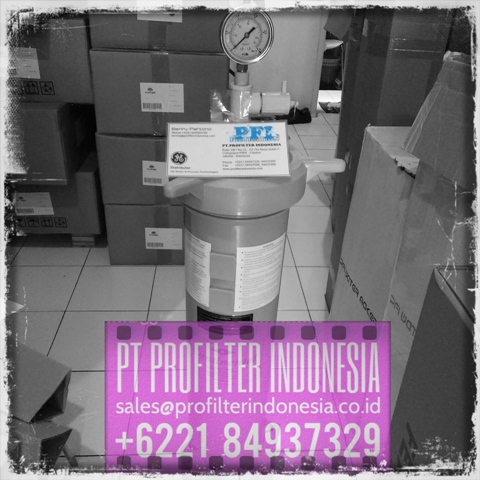

PP Housing Filter Bag Cartridge Indonesia large

Polypropylene Bag Filter Housing

Code : BFHPP23

Deskripsi :

Polypropylene Bag Filter Housing

PFI FILTER HOUSINGS BFH / CFH – PP , BFH / CFH – SS CONVERTIBLE SIDE LINER HOUSINGS

PRODUCT CATAGORIES

BFHPP23 - Size Five Polypropylene Bag Housing
CFHPP23 - Polypropylene 140mm OD Cartridge Housing
BFHSS23 - Size Five Stainless Steel Bag Housing
CFHSS23 - Stainless Steel 140mm OD Cartridge Housing

Applications of Stainless Steel | Polypropylene Cartridge or Bag Filter Housing

Inks & Polymers Filtration
Paints & Lacquer Filtration
Chemicals
Petrochemicals
Electronics
Waste Water Treatment
Food & Beverage
Pharmaceuticals
Prefilter RO/DI

Polypropylene Bag Filter Housing

Features

Convertible between bag and cartridge housings
Patented bypass free pressure seal collar
Effective top mounting O-ring gasket
Inlet/outlet Connection : BSP
Seal Gasket Materials: Buna-N & Viton
Standard Package: Buna-N gasket, tripod stand & basket

Technical Specifications

Specification	BFHPP23	CFHPP23	BFHSS23	CFHSS23
Max. clean water flow rate	23 m³/Hr	20 m³/Hr	23 m³/Hr	20 m³/Hr
Filter surface area	0.25 m²	0.23 m²	0.25 m²	0.25 m²
Vessel volume	18 liters	18 liters	18 liters	18 liters
Operating pressure	0.5 MPa	0.5 MPa	0.7 MPa	0.7 MPa
Max. pressure allowed	0.6 MPa	0.6 MPa	0.8 MPa	0.8 MPa
Operating temperature	Max. 60ºC	Max. 60ºC	Max. 120ºC	Max. 120ºC
Qty. & size of filter used	1EA, # 5 filter bag	1EA, 140mm OD cartridge	1EA, # 5 filter bag	1EA, 140mm OD cartridge

Jumlah :

Ada pertanyaan tentang produk?

Hubungi :

0818807696 | 081385066789

Hubungi via WA 081385066789
