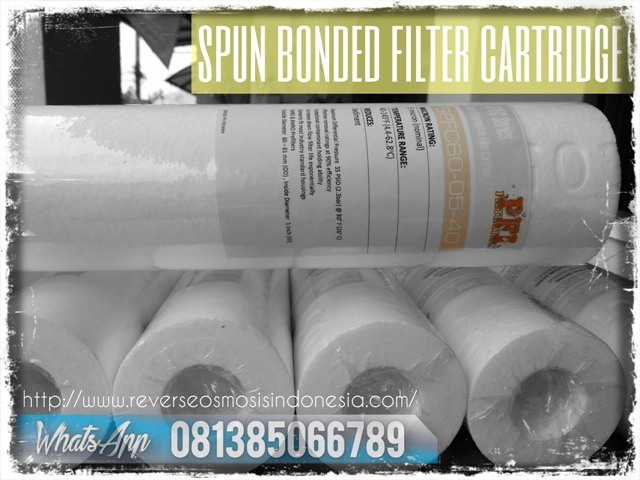

SPFC Spun Bonded Filter Cartridge Indonesia  large
Cartridge Filter 5 Micron 10 inch
Code : CF5M10i
Deskripsi :

Cartridge Filter 5 Micron 10 inch

Kami adalah importir distributor agen dan supplier terlengkap untuk menyediakan berbagai kebutuhan spare part filter untuk keperluan industri dengan price harga terbaik



 We Have Filter Material :

·         String Wound Filter , Cotton Wound & Polypropylene Wound

·         Melt-Blown Filter

·         Pleated Filter

·         Melt-Spun Filter


For Core Material :

String Wound Filter

·         SS316 Core

·         SS304 Core

·         Tin Steel Core

·         Polypropylene


Melt Blown Filter

·         Polypropylene Core


Micron Size : 1 – 200 micron

Length ; 10” – 60”

Diameter : 2.5” & 4.5”

Cartridge Filter 5 Micron 10 inch

PFI Spun Bonded Filter Cartridges are made of 100% polypropylene fibers. These fibers have been carefully spun together to form a true gradient density from outer to inner surface. Spun Bonded Filter Cartridges are available with core and without core version. The superior structure remains integral even under severe operating conditions and is no media migration. Polypropylene fibers are blown continuous on central molded core, without the need for binders, resins or lubricants. Operation unfiltered fluid passes through depth filter matrix, enables the progressive retention of finer particles, providing high efficiency, high dirt retention, and filter life. Fluid flows from outside to inside through filter media. Particulates are held securely in the filter matrix and clean fluid flows to the downstream side of cartridge.

Features

100 % Polypropylene for wide chemical compatibility

Excellent flow with low pressure drop

Excellent flow with low pressure drop

High strength & pressure resistance

Nominal & absolute filtration rating

Free of surfactants, Binders and Adhesives

High dirt holding capacity

One piece construction up to1016 mm. and more


Technical Specifications

Sizes : 10”,20”,30”40” Long

Inner Diameter : 25mm , 28 mm ,48 mm

Outer Diameter : 64 mm (2.5”) , 114mm (4.5”) , 6” , 8”

Micron Rating : 0.5 , 1 , 5, 10, 25, 50 , 75 , 100


Configuration

Double Open Type (DOE Type)

Code 7 (226 O Ring Design)


Construction

Spun bonded filter cartridges are made up of 100% Polypropylene


Applications

Pharmaceuticals: base product clarifications, membrane pre filter

Fine chemicals: solvents, process streams, water purification

Food & beverages: bottled water, flavors, polishing lines

Petrochemicals: water flood, completion fluids, amines

Water treatment: membrane protection, resin trap

Cosmetics: alcohols, essential oils , water lines

Electronics: electroplating, etching, image development

Metal finishing: plating solution, paint and resin products, wash

Magnetic coating: dispersions, coating lines, solvents


String Wound Cartridge Introduction:

String wound filter cartridges resembles the structure of porous outside and dense inside. Using specific technique the fiber yarn is tightly wound on porous core which contributes to good filtration result. It can effectively filter the impurities in the fluid, suspended substances, for instance, rusts, particles etc. Porosity string wound filter cartridge is an up-model products made with current international advanced technology. Advanced winding technique helps to rectify the defects of former products including large resistance and short service life etc. and reduce the utilization cost.



String Wound cartridges provide true depth filtration utilizing hundreds of tapered filtering passages of controlled size together shape. Each layer of roving contributes to true depth filtration by trapping its share of particles. Wound cartridges offer a gradual pressure Increase during cartridge life Versus surface-type media that have an abrupt flow cutoff when loaded. In addition, the Irregular outer layer reduces Surface blinding, assuring both longer cartridge life and full Cartridge utilization.

PFI Process Filtration has been a leader in filter media innovation and performance. PFI ‘s ISO9002 approved factory manufactures for wound cartridges, offering superior quality along with technical, engineering and marketing support.

PFI string wound cartridges covers a wide application area such as Edible Oils, Concentrated Alkalis, Dilute Acids & Alkalis, Mineral Acids, Organic Acids& Solvents, HTF, Oxidizing Agents, Petroleum Oils, Photo Solutions, Potable Liquids, water, Amines, etc
