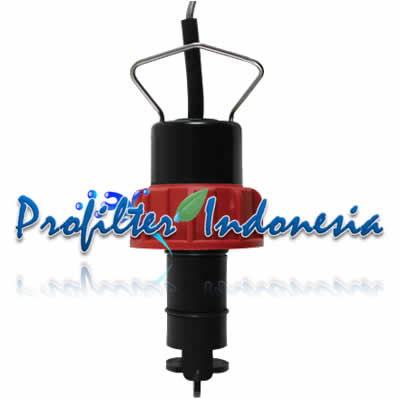

515 Rotor X Paddlewheel Flow Sensors profilterindonesia  large
515 Rotor X Paddlewheel Flow Sensors
Code : 515GF
Deskripsi :

515 Rotor X Paddlewheel Flow Sensors



 515 Rotor X Paddlewheel Flow Sensors



Simple to install with time-honoured reliable performance, Model 515 Rotor-X paddlewheel flow sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The output signal of the Model 515 is a sinusoidal frequency capable of driving a self-powered flowmeter (Model 5090). The wide dynamic flow range of 0.3 to 6 m/s (1 to 20 ft/s) allows the sensor to measure liquid flow rates in full pipes and can be used in low pressure systems.

The Model 515 sensors are offered in a variety of materials for a wide range of pipe sizes and insertion configurations. The many material choices include PP and PVDF make this model highly versatile and chemically compatible to many liquid process solutions. Sensors can be installed in up to DN900 (36 in.) pipes using Signet's comprehensive line of custom fittings. These custom fittings, which include tees, saddles, and weldolets, set the sensor to the proper insertion depth into the process flow. The sensors are also offered in configurations for wet-tap and intrinsically safe installation requirements.

P51530PO 515 Flow Sensors

P51530PO 515 Flow Sensors



Fields of Application:

·         Pure Water Production

·         Filtration systems

·         Chemical Production

·         Liquid Delivery Systems

·         Pump Protection

·         Scrubber Systems

·         Water Monitoring

·         Not suitable for gases



Advantages:

·         Flow rate range 0.3 to 6 m/s (1 to 20 ft/s)

·         Wide Turndown Ratio of 20:1

·         Highly repeatable output

·         Simple, economical design

·         Installs into pipe sizes DN15 to DN900 (½ to 36 in.)

·         Self-powered

·         7.6 m (25 ft) cable for Standard and Wet-Tap sensors

·         Chemically resistant materials

·         Easy to replace rotor



Standards:

·         RoHS compliant



For more informations please call +62818807696 or email sales@profilterindonesia.com
