Reverse Osmosis adalah proses pemisahan air murni melalui membrane semi serap dimana hasil ini digunakan pada industrial water treatment

 PROFILTER Cotton String Wound Filter Cartridges

Untuk info stock barang dan harga silahkan hubungi 081385066789

The filter cartridges are string-wound depth filter elements.

This filter cartridges can be used in many different types of applications due to the many different combinations of filter materials and inner cores.

Technical Data:

Filter Fineness (nominal): 0.5 -1-3-5-10-25-50-75-100-150 μm

Length: 5" - 40"

Inside Diameter: 28 mm

Outside Diameter: 62 mm

Max. Working Temperature: 1

80°C (Polypropylene)

160°C (Cotton)

400°C (Glass fiber)

Max. Differential Pressure: 2.5 bar / 30°C

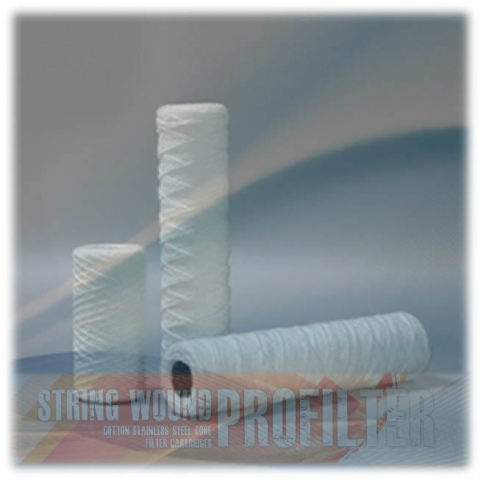

PROFILTER Cotton String Wound Filter Cartridges

String Wound Filter Cartridge Introduction:

String wound filter cartridges resembles the structure of porous outside and dense inside. Using specific technique the fiber yarn is tightly wound on porous core which contributes to good filtration result. It can effectively filter the impurities in the fluid, suspended substances, for instance, rusts, particles etc. Porosity string wound filter cartridge is an up-model products made with current international advanced technology. Advanced winding technique helps to rectify the defects of former products including large resistance and short service life etc. and reduce the utilization
String Wound cartridges provide true depth filtration utilizing hundreds of tapered filtering passages of controlled size together shape. Each layer of roving contributes to true depth filtration by trapping its share of particles. Wound cartridges offer a gradual pressure Increase during cartridge life Versus surface-type media that have an abrupt flow cutoff when loaded. In addition, the Irregular outer layer reduces Surface blinding, assuring both longer cartridge life and full Cartridge utilization.

PFI Process Filtration has been a leader in filter media innovation and performance. PFI ‘s ISO9002 approved factory manufactures for wound cartridges, offering superior quality along with technical, engineering and marketing support.
PFI string wound cartridges covers a wide application area such as Edible Oils, Concentrated Alkalis, Dilute Acids & Alkalis, Mineral Acids, Organic Acids& Solvents, HTF, Oxidizing Agents, Petroleum Oils, Photo Solutions, Potable Liquids, water, Amines, etc

Technical Data:

·         Filter Fineness (nominal): 0.5 -1-3-5-10-25-50-75-100-150 μm

·         Length: 5" - 40"

·         Inside Diameter: 28 mm

·         Outside Diameter: 62 mm

·         Max. Working Temperature: 1

·         80°C (Polypropylene)

·         160°C (Cotton)

·         400°C (Glass fiber)

·         Max. Differential Pressure: 2.5 bar / 30°C

PT.PROFILTER INDONESIA Quick Response +6281385066789 Email : sales@profilterindonesia.com

LW-30-B-S-1, LW-40-B-S-1, HFU640UY200J, HFU660UY200J, 23R40S, 23R30S, K39R40S, K39R30S

Replace Pall Filter Cartridge :

FDA Bleached Cotton Wound Filter with 302 Stainless Steel Core materials

1C40A , 1C30A, 1C20A, 1C10A, 3C40A , 3C30A, 3C20A, 3C10A, 5C40A , 5C30A, 5C20A, 5C10A, 10C40A , 10C30A, 10C20A, 10C10A, 20C40A , 20C30A, 20C20A, 20C10A, 25C40A , 25C30A, 25C20A, 25C10A, 30C40A , 30C30A, 30C20A, 30C10A, 50C40A , 50C30A, 50C20A, 50C10A
