Reverse Osmosis adalah proses pemisahan air murni melalui membrane semi serap dimana hasil ini digunakan pada industrial water treatment

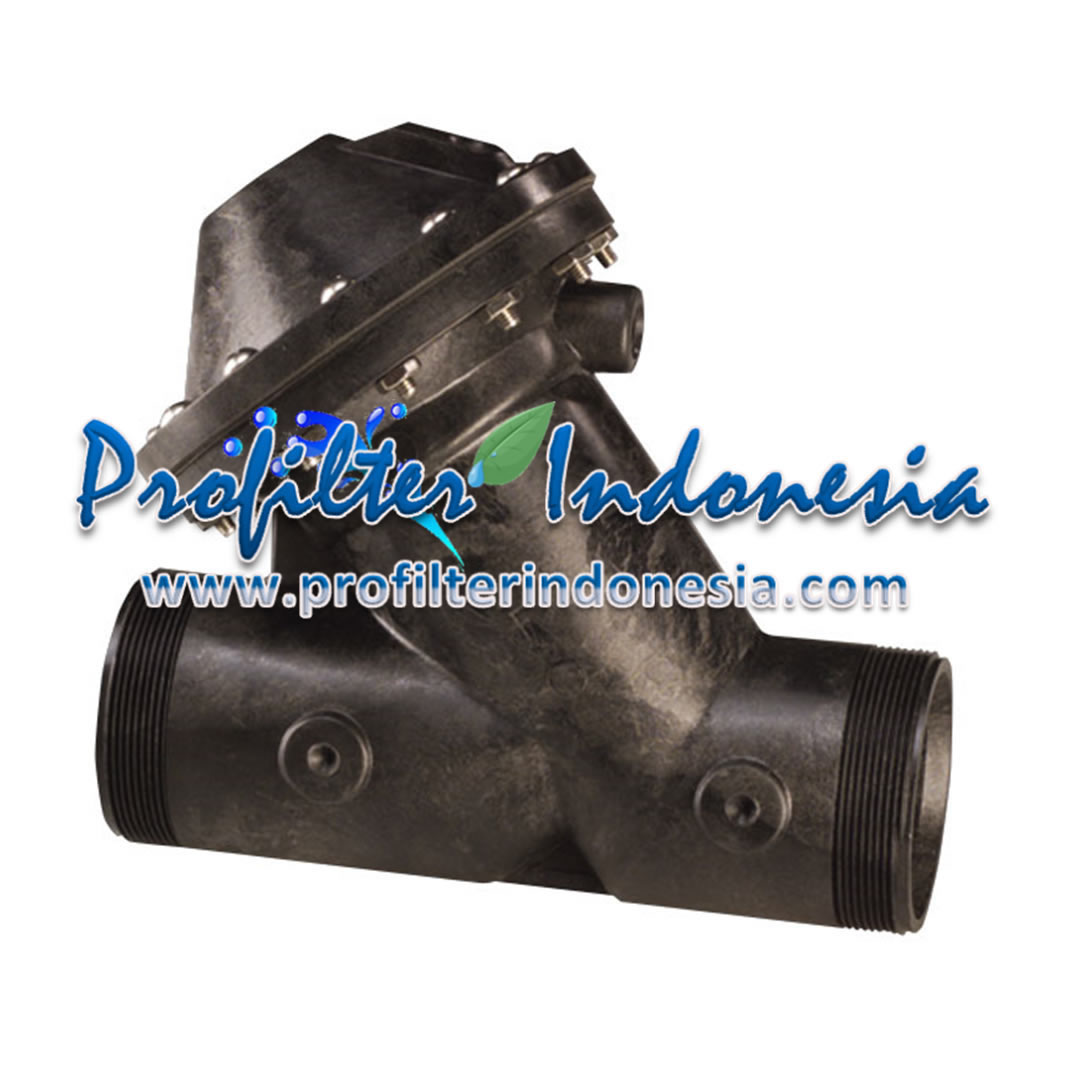

AquaMatic K521-X200-54000 Composite Valves

 AquaMatic K521-X200-54000 Composite Valves

1 inch "Y" pattern diaphragm valves
Glass-filled thermoplastic body and cap

AquaMatic Valve K521-X200-54000

·         Body Size: 1"

·         Valve Options: Normally Open Valve

·         Diaphragm/Seal: Buna−N/ Fluoroelast.

·         Drilled and Tapped: None

·         Solenoid Options: None

·         Solenoid Features: None

Features :

·         Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss

·         Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications

·         Cost-effective solution both in initial cost, as well as lifetime maintenance expenses

·         Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line

·         Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime

·         All internal parts in contact with media are made of composite materials

·         Can be actuated with either air or water as control fluid

·         Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode medtal valves

We have stock on Ruko SB1/23 Vila Nusa Indah 5 – Cibubur – Jakarta :

·          AquaMatic K521-X200-14000 Composite Valves PN:1070154 With Kit PN:1070202

·          AquaMatic K521-X230-14000 Composite Valves PN:1070159 With Kit Kit PN: 1070202

·          AquaMatic K521-X200-64000 Composite Valves PN:1071118 With Kit PN:1071153

·          AquaMatic K521-X200-54000 Composite Valves PN:1071117 With Kit PN:1071154

·          AquaMatic K521-X232-14000 Composite Valves PN:1070160 With Kit PN:1070202

For More Info Call Phn 08188 07696 or Email : sales@profilterindonesia.com
